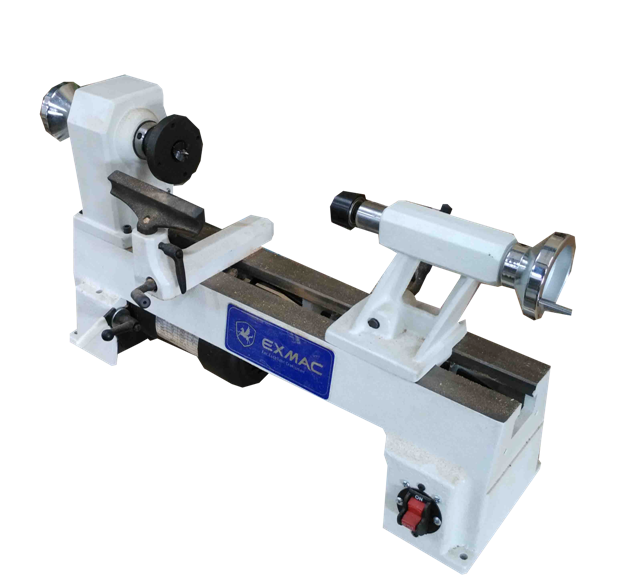

木工機博銓EX-1014木工車床 /Lathe
|
| |
售價 : NT$13,500 未稅不含運 |
| |
洽詢信箱 : john3687@gmail.com 電話: 0928-351912 |
| |
產品特色 |
|
- 六段皮帶變速
- 簡易撥切開關
- 標準配件 : 3" 面盤 ,前頂針, 後頂針 , 刀具托架 , 頂針退出棒
- 入門基本款，適合一般初學者使用
- 桌上型小車床，最大25.4公分加工尺寸
- 也可用於一般小型加工
- Six speed gear
- Slide switch
- Standard accessories: 3" plate, front thimble, rear thimble, swing over bed, thimble ejection tool
- Basic type, suitable for beginners
- Table-type, with a maximum processing size of 25.4 cm
- Can also be used for small-scale processing

|
|
產品規格 |
|
height/高度: |
|
14.13"/35.9cm |
width/寬度: |
|
10.25 "/26.04cm |
length/長度: |
|
28.13"/71.45cm |
net weight/淨重: |
|
33kg |
Maximum processing diameter/最大加工直徑: |
|
10 "/25.4cm |
Processing diameter on the swing over bed
/
刀架座上方加工直徑: |
|
17.5"/19.05cm |
Maximum processing length/最大加工長度: |
|
14'' /35.56cm |
speed/速度: |
|
500,840,1240,1800,2630,3975(rpm) |
Spindle size/主軸尺寸: |
|
1"x 8 TPI |
Swing over bed/刀架尺寸: |
|
2"/15.24cm |
motor/馬達: |
|
0.5 HP, 115V, 5A, 1Ph |
全組裝尺寸: |
|
69 x 20 x 37cm |
|
|
|
